Home /Built-In Refrigeration /24″ Dual-Zone Undercounter Wine & Beverage Center – Stainless Steel
SKU · RF-UC-FD-24-SS
Shipping by October 31st Reserve yours for the earliest delivery

24″ Dual-Zone Undercounter Wine & Beverage Center – Stainless Steel

$1,899.95

The undercounter companion to our wine columns. Two independently controlled zones behind soft-close French doors — 20 bottles on beech racks, 63 full-size cans beside them — in a flush 24″ built-in footprint.

Lifetime warrantyIndustry first
Two independent zonesWine and beverage, separately set
Front-breathingZero side or rear clearance
ETL certified115 V · standard outlet
Build Your Full Kitchen Suite Match every appliance to this finish in one place.

This product will be shipping by October 31st.

24in
French-door footprint
2
Independent temperature zones
20
Wine bottles, left zone
63
Standard cans, right zone

Two temperatures.One cabinet.

A 24″ French-door design built for the way real kitchens entertain — wine and full-size cans, each held at its own ideal temperature, side by side beneath the counter.

Cellar on the left. Cold cans on the right.
The two zones

Cellar on the left. Cold cans on the right.

Two sealed compartments, two compressor-fed evaporators, two touch controls. Set the left for a Burgundy at 55°F and the right for lagers at 36°F — neither one drifts when you open the other.

  • Five beech wine racks — rolled edges and full-depth cradles hold 20 bottles label-out, including Burgundy and Champagne shapes.

  • Three adjustable beverage shelves — sized for 12 oz cans, 16 oz tallboys, and 750 ml mixers without re-stacking.

  • Independent digital controls — one touch panel per door, each with its own display, °F/°C toggle, lock, and LED switch.

Sits flush in the run, or stands on its own.
Built-in or freestanding

Sits flush in the run, or stands on its own.

The compressor breathes entirely through the front toe grille, so the cabinet can close in on both sides and the back. Drop it into a 24″ base cutout under the counter, or set it against a wall at the end of an island.

  • Front-venting, zero-clearance — no cabinet cut-outs, no side gaps, no air gap above.

  • Soft-close French doors with pro tubular handles and dual-pane low-E tinted glass that blocks UV and holds temperature.

  • Levelling feet and a 33.9″ height — lines up with a standard 34″ base cabinet and a 36″ finished counter.

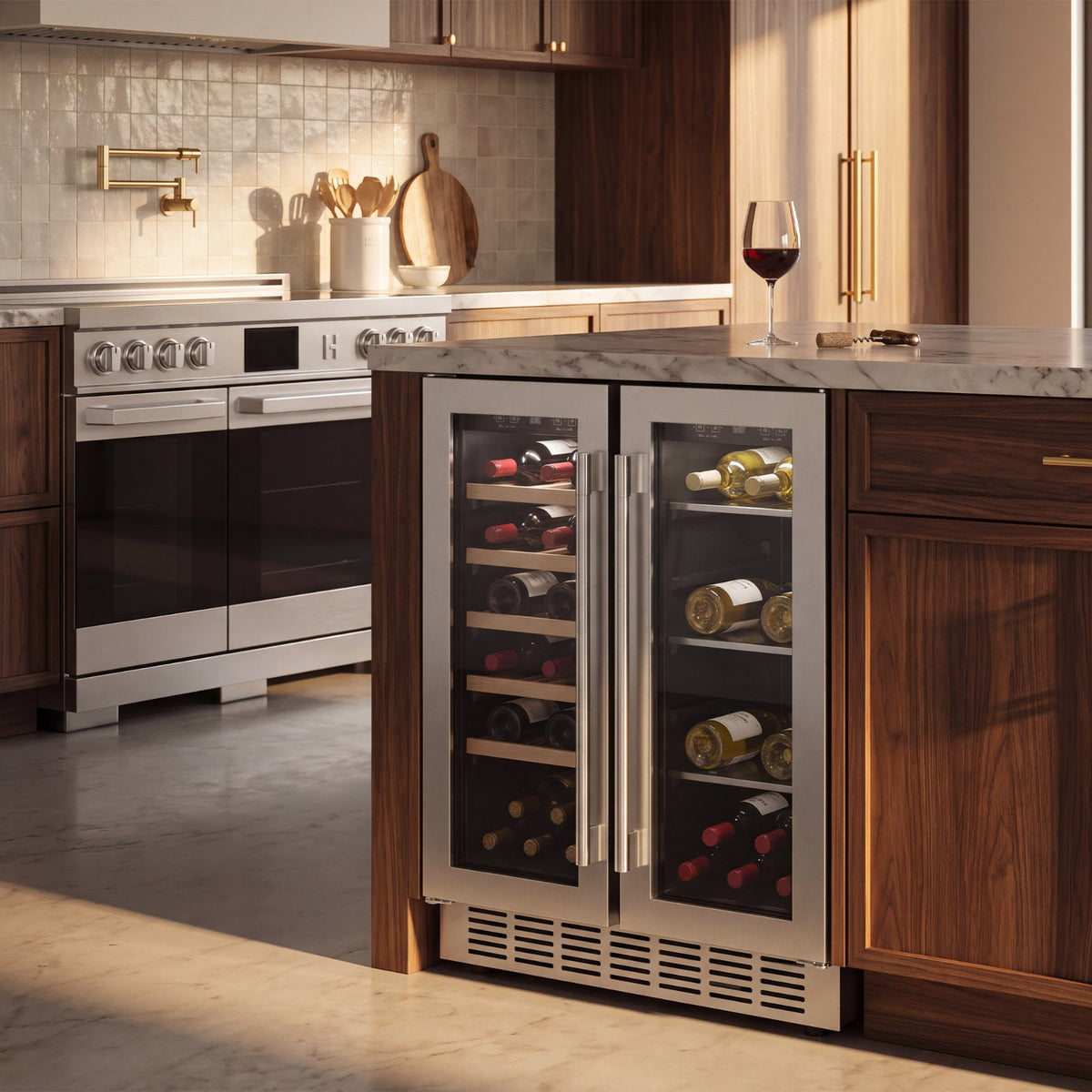

The bar that disappears into the island.

The bar that disappears into the island.

Glass fronts, warm interior light, and a flush stainless face — refrigeration that belongs to the cabinetry instead of interrupting it.

An industry first

A lifetime warranty
on every product we make.

We build to a fit-and-finish standard the appliance industry doesn't — a digital inverter compressor, hardened glass, premium materials, no expense spared. So we back every product we make for as long as you own it.

Read the warranty →
Up close

Engineered to be opened.

The racks, the glass, the controls, the light — swipe through the details.

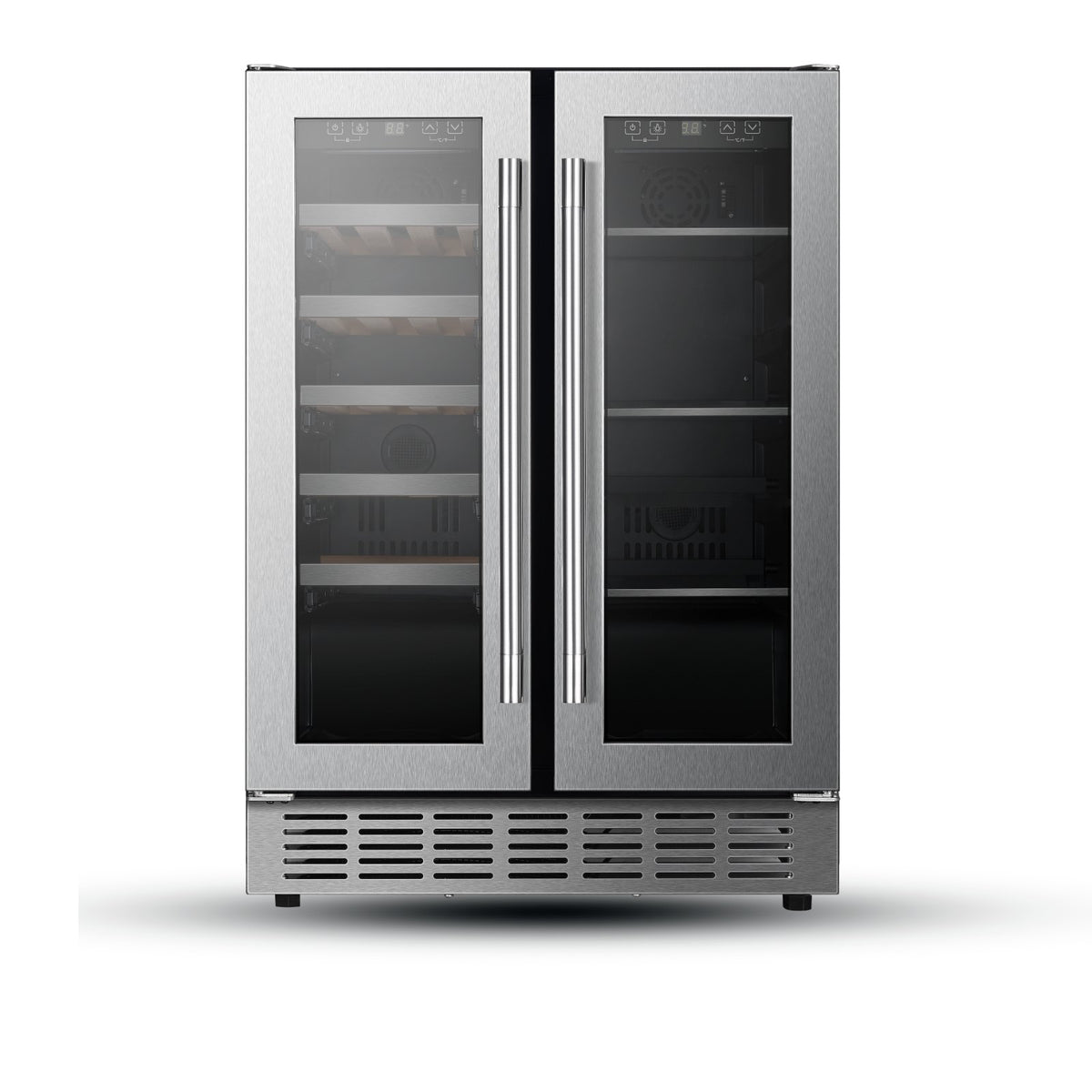

The face
The faceFlush stainless frame, twin tubular handles.

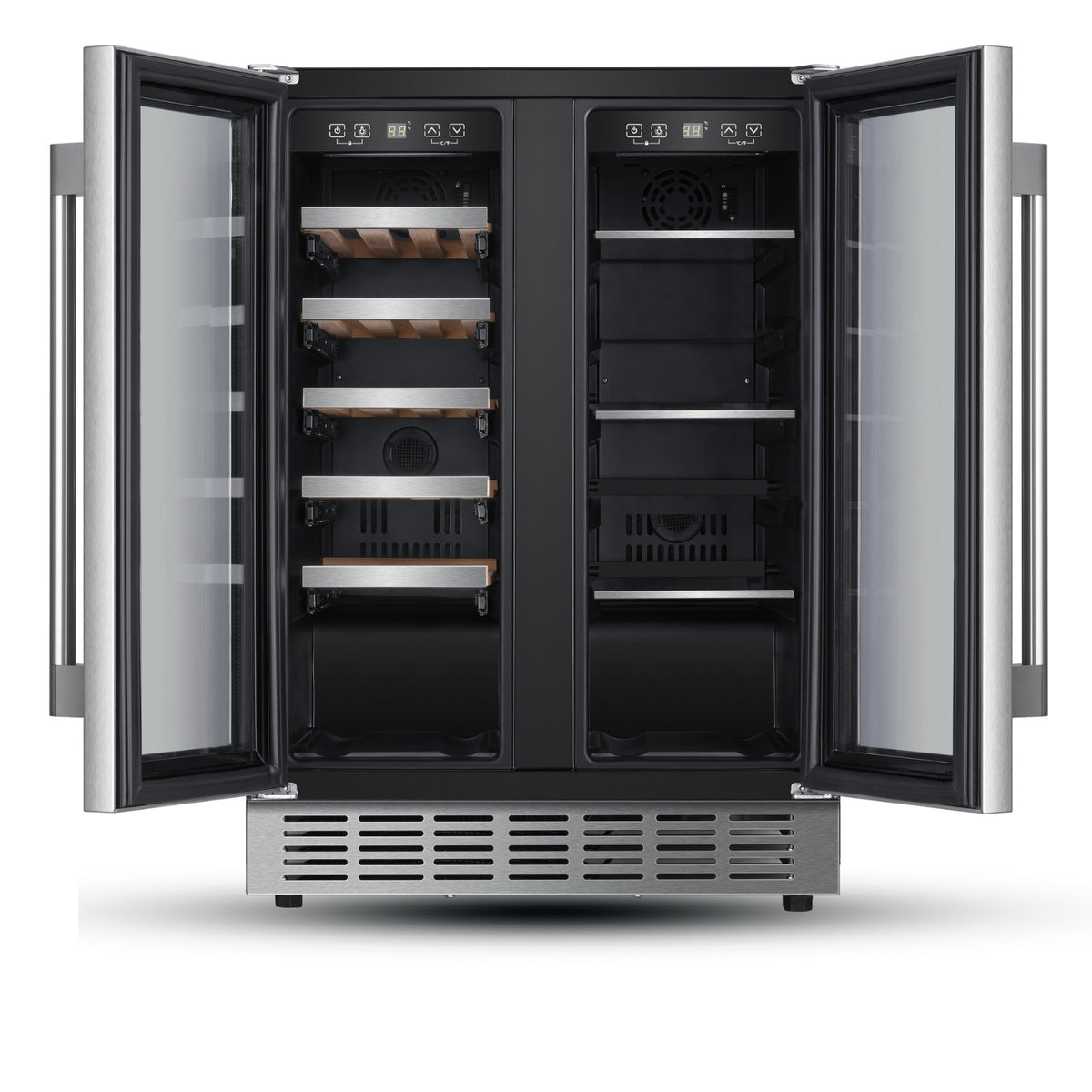

Both zones, open
Both zones, openBeech racks left, adjustable shelves right.
Loaded for a party
Loaded for a partyBottles and cans, chilled separately.

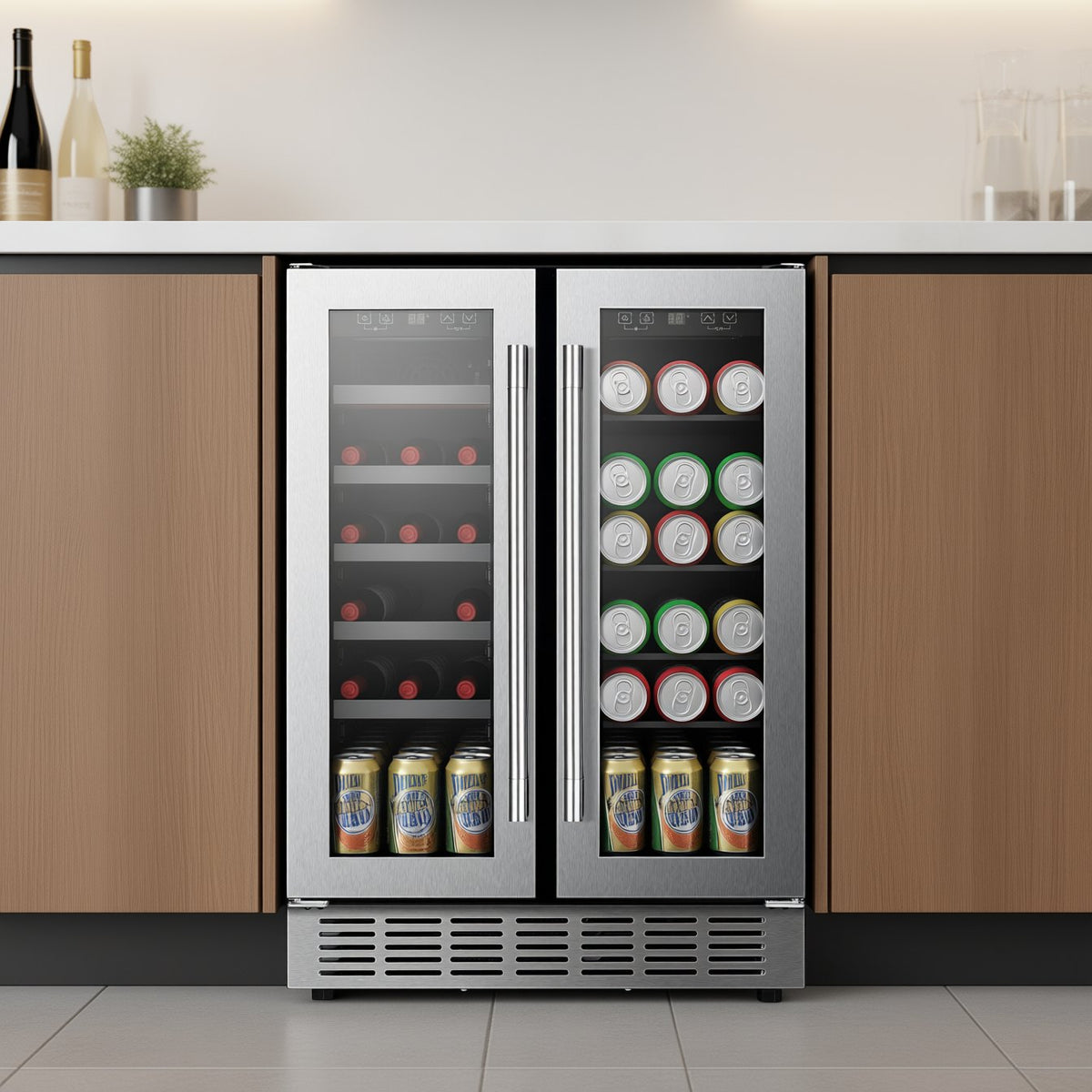

Flush in the run
Flush in the runFront-breathing — cabinetry closes in on both sides.

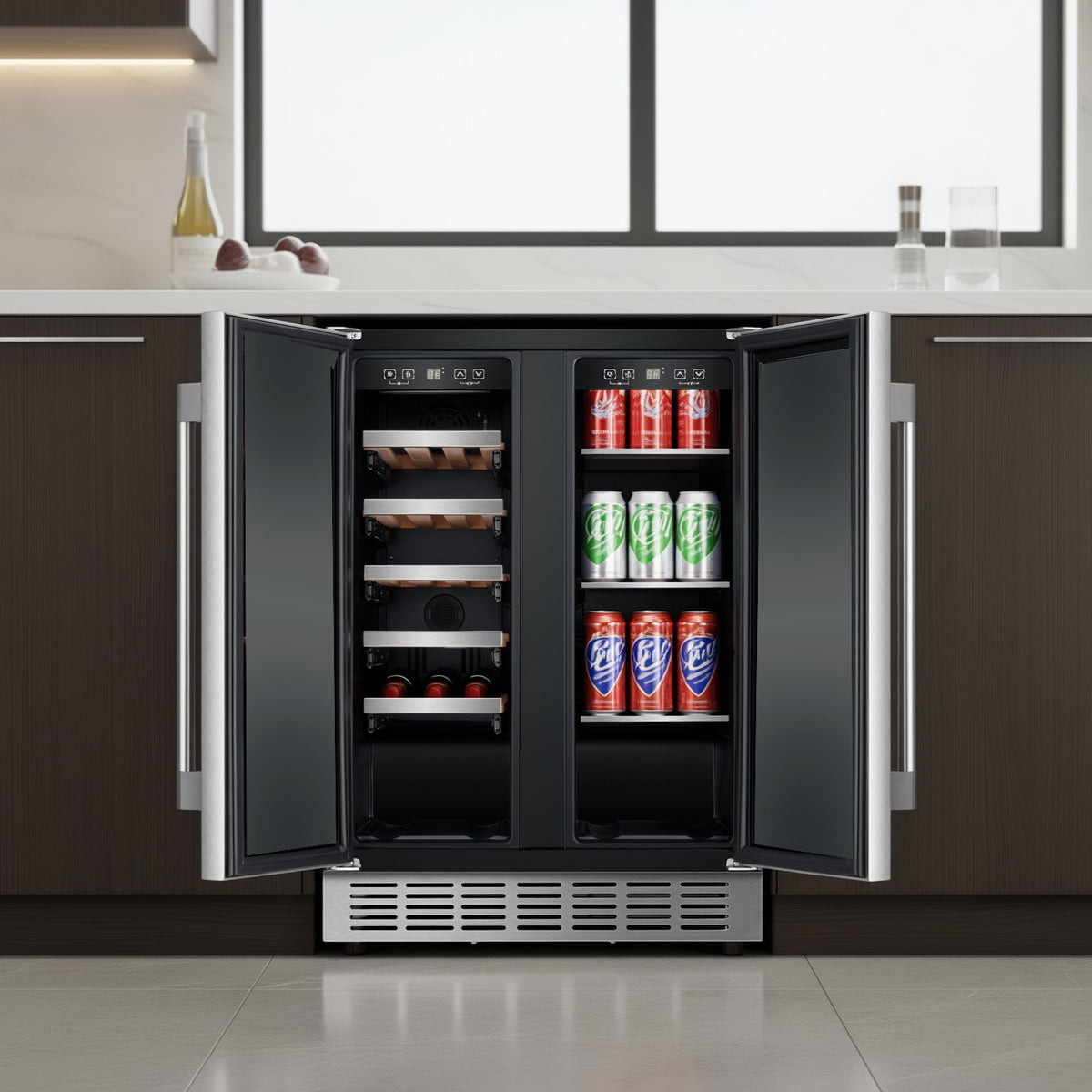

The detail
The detailStainless face, tubular handles, front toe grille.
Fit & install

Built to drop right in.

A true 24″ undercounter build-in, front-venting, on a standard 115 V outlet. Share these with your designer, builder, or electrician.

  • Overall (W × D × H)23.43" W × 22.4" D × 33.9" H
  • Cutout (W × D × H)24" W × 24" D × 34.25" H
  • Capacity20 bottles + 63 cans
  • ClearanceZero — front-breathing toe grille
  • InstallationBuilt-in undercounter or freestanding
  • Product weight112 lbs
  • CertificationETL
  • Power115 / 60 HzV · 15A
  • PlugNEMA 5-15P, 3-prong grounded
Full specifications

Every detail, on the record.

Switch between systems for the complete spec sheet — capacity, cooling, fit, and power.

Configuration Dual zone · French door
Wine capacity 20 bottles (750 ml)
Beverage capacity 63 standard 12 oz cans
Total volume 4.9 cu ft
Wine shelving 5 beech racks, full-depth cradles
Beverage shelving 3 adjustable stainless-trimmed shelves
Bottle shapes Bordeaux · Burgundy · Champagne
Interior light Soft-white LED, per zone, switchable
Cooling Compressor, fan-forced per zone
Wine zone range 41–64 °F
Beverage zone range 34–50 °F
Refrigerant R600a · eco-friendly
Controls Two independent digital touch panels
Display Per-zone LED readout · °F / °C
Safety Control lock · door-ajar alarm
Sound level 38 dB at normal operation
Overall (W × D × H) 23.43 × 22.4 × 33.9 in
Cutout (W × D × H) 24 × 24 × 34.25 in
Product weight 112 lbs
Shipping weight 128 lbs
Installation Built-in undercounter or freestanding
Clearance Zero side, rear, and top
Electrical 115 V · 60 Hz · 15 A
Plug NEMA 5-15P, 3-prong grounded
Certification ETL
Finish Stainless Steel
Glass Dual-pane low-E tinted, UV-blocking
Warranty Lifetime — an industry first
